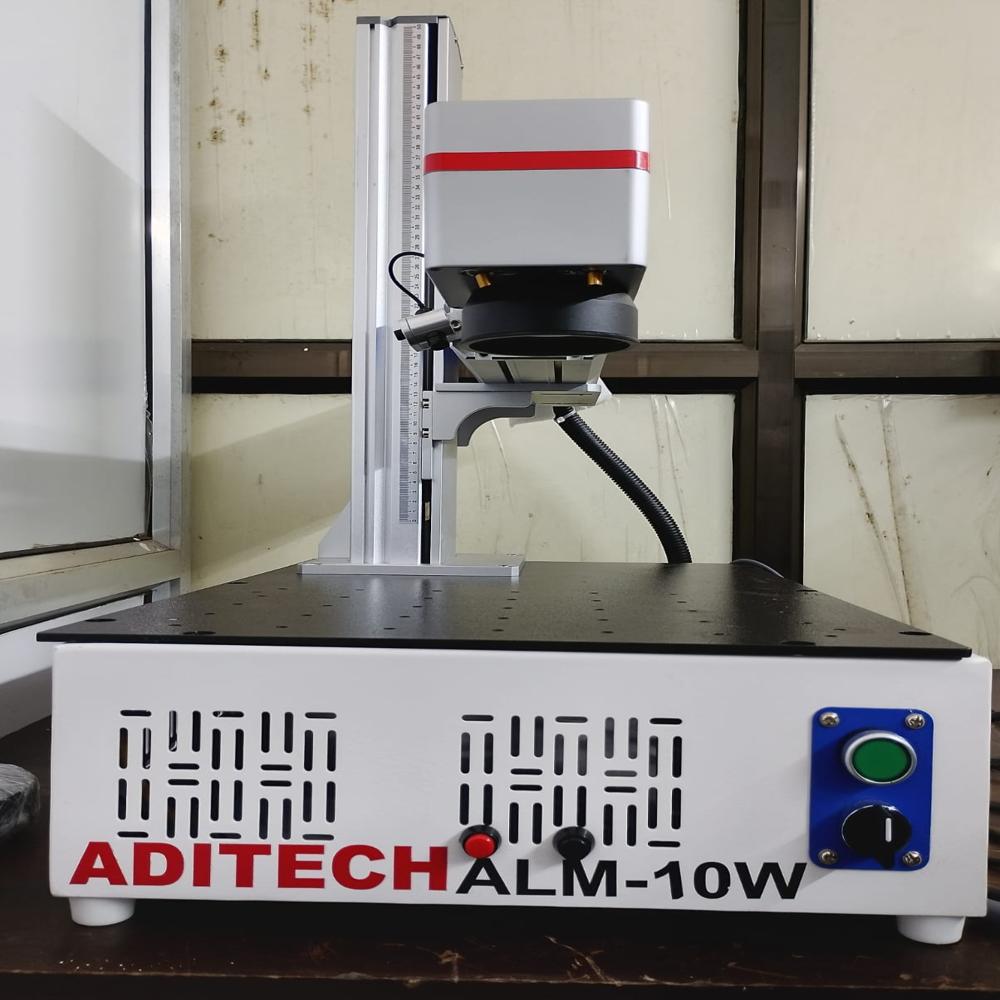

Compact Jewellery Laser Marking & Engraving Machine (Pulsed Fiber Laser)

Product Overview:

The Adi Tech Compact Jewellery Laser Marking & Engraving Machine is an industrial-grade, high-precision fiber laser system designed specifically for the jewelry manufacturing and processing industry. Engineered under the 'Make in India' initiative, this versatile machine delivers exceptional precision for hallmark marking, logo engraving, custom text, and fine metal cutting on gold, silver, brass, and other precious metals.

Key Features & Technical Specifications:

• Laser System: High-performance Pulsed Fiber Laser with a 1064 nm wavelength.

• Output Power: Standard 20 W output power (Optional configurations available in 10 W, 30 W, 50 W, 80 W, and 100 W).

• High-Speed Operation: Achieves a maximum linear speed of up to 12,000 mm/s for high-volume production.

• Work Area Flexibility: Standard 70 x 70 mm working area (Optional sizes: 100 mm, 200 mm, and 300 mm).

• High Precision: Beam Quality ($M^2$) $< 1.6$, supporting fine character heights down to 1.5 mm.

• Energy Efficient: Standard single-phase 220V / 50Hz power supply with a low power consumption of approximately 500 W.

• Cooling System: Built-in maintenance-free Air Cooling System suitable for operational ambient temperatures from 0C to 25C.

Applications:

• Precision hallmark, logo, micro-text, and barcode marking on rings, bangles, pendants, and medals.

• Deep photo and artwork engraving on metal surfaces.

• Fine sheet metal and pattern cutting for intricate jewelry design.
